100 Lotus Grande Venezia

Lotus International Luxury Yachts Pte Ltd

Builders of Custom Luxury Motor Yachts Since 1987

The 87 Lotus Venezia has to be one of the most successful motor yachts of her size with a dozen delivered within the first three years of production. The outstanding success of the 87 Lotus Venezia has led to the development of the new flagship—a natural evolution, you may say—to the 100 footer, Lotus Grande Venezia.

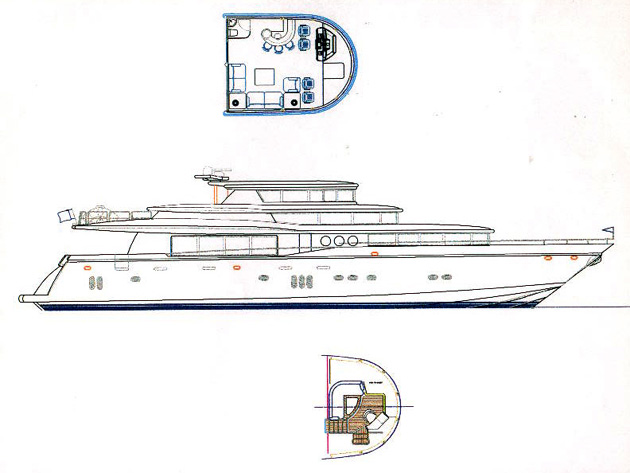

The new flagship is built upon the solid foundation of the 87 Lotus Venezia, the additional 13 feet giving her significantly greater volume. Based on a modification of the proven hull by the original naval architect, the 100 Lotus Grande Venezia has a completely new superstructure providing a triple deck arrangement. The generous beam of 23ft 7ins (7.2m) gives the motor yacht an optimum beam to length ratio. The central feature of the new flagship has to be the fully climate-controlled Sky Lounge, located on the highest deck, which offers an all round panoramic view.

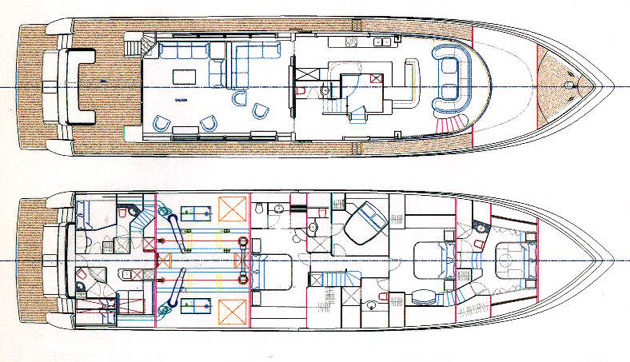

The enlarged saloon on the main deck provides sumptuous megayacht facility. In the forward section the owner may choose to have a country kitchen and lounge or the owner's stateroom with a 180 degrees panoramic view.

Up to four staterooms may be configured below deck. The new flagship redefines luxury as found on the 87 Lotus Venezia.

100 Lotus Grande Venezia

See Alternative Designs

LOA	99’ 2”	30.2m
Beam	23’ 7”	7.2m
Draft to propeller tip	6’ 3”	1.9m
Displacement (dry)	210,437 lb	95.5 T
Displacement (loaded)	242,440 lb	110 T
Fuel Capacity	4,000 gallons	15,142 L
Fresh Water Capacity includes water-maker	540 gallons	2,044 L
Standard engines Twin MTU 1,826 Common Rail	2 x 1,826 mhp	2 x 1,343 bkW
Standard engines Twin MTU 2,000 Common Rail	2 x 2,000 mhp	2 x 1,492 bkW
Standard generating set Twin Northern Light	2 x 33 ekW (60Hz)	2 x 26 ekW (50Hz)
Performance (half/full load)*	Twin 1,826hp 26/24.5 knots	Twin 2,000hp 27.5/26 knots
Staterooms/crew cabin	4 staterooms for eight to ten	2 crew cabins for four
Sky Lounge	Standard	Extension optional

* Performance estimates are given in good faith, but are in no way guaranteed for any particular boat. Condition of the bottom of the hull, correct sizing of propellers used or damage to the propellers, engine tuning, ambient air and water temperatures and the weight of crew, fuel and water carried can all adversely affect performance. For these and other reasons we can give no performance guarantees.
